Product Details
＋

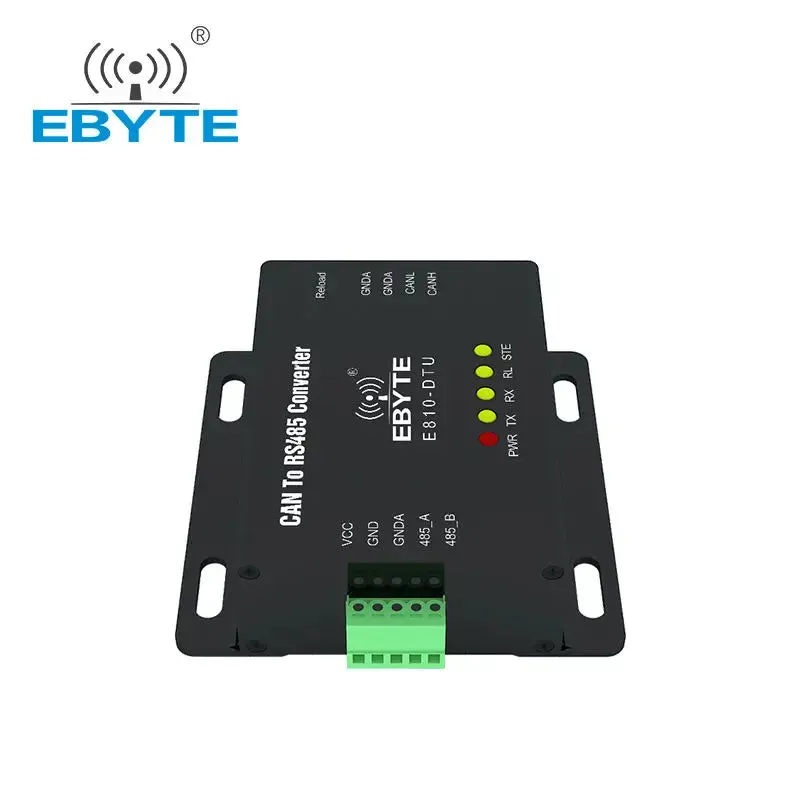

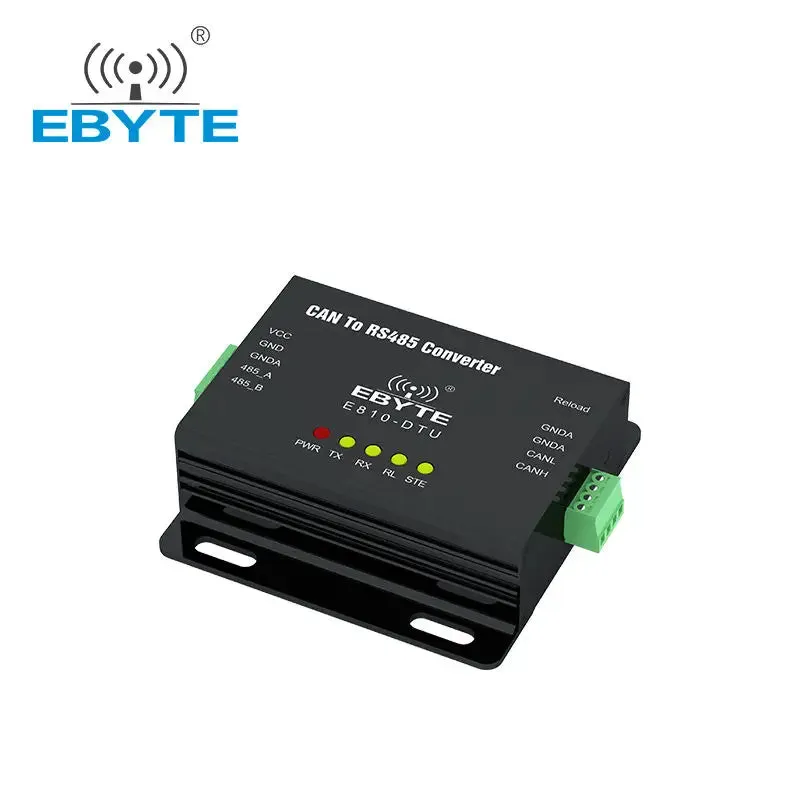

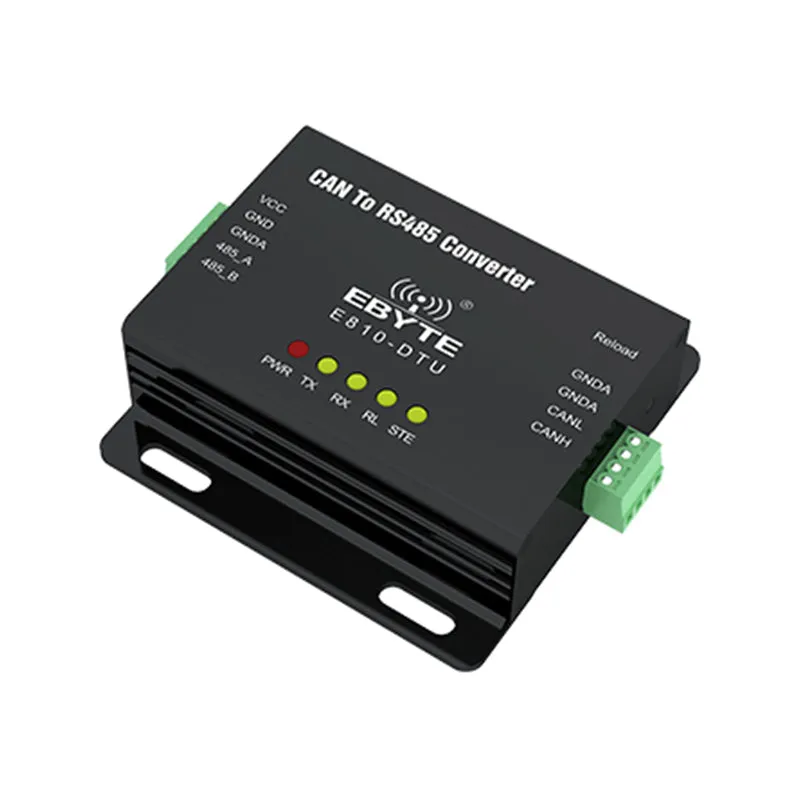

E810-DTU(CAN-RS485) 8V ~ 28V of power supply RS485 to CAN-B
[IC]：RS485
[Interface]：CAN
[Product weight]：74g±1g
[Feature]：RS485 to CAN-BUS

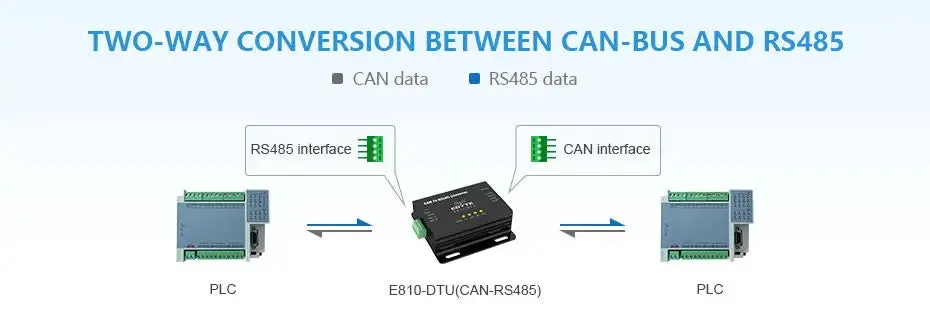

[Introduction]：E810-DTU (CAN-RS485) is a small intelligent protocol converter developed by Chengdu Ebyte Electronic Technology Co., Ltd. It is with 8V ~ 28V of power supply, integrating 1 channel CAN-BUS interface and 1 channel RS485 interface to realize bidirectional conversion between different protocol data from RS485 and CAN.
| Category | Items |
Value |
| RS485 |
Serial baud rate Parity Data bit Stop bit Flow control |
115200 bps None 8 1 Off |
| CAN |
CAN baud rate CAN ID Flow control |
100k bps 0x00000000 Off |
| Default operating mode |
Transparent transmission mode |
Receive all kinds of data |
| Default device address |
Modbus device address |
Default device address is 1 |
| Frame sub-packing parameter |
Time Byte |
10ms 1000 byte |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
|
Voltage supply |
8 | - | 28 | V |
12V or 24V is recommended（ Voltage over 28V will cause permanent damage ） |
| Operating temperatur |
-40 | - |
85 | ℃ |
Industrial grade |
