Product Details
＋

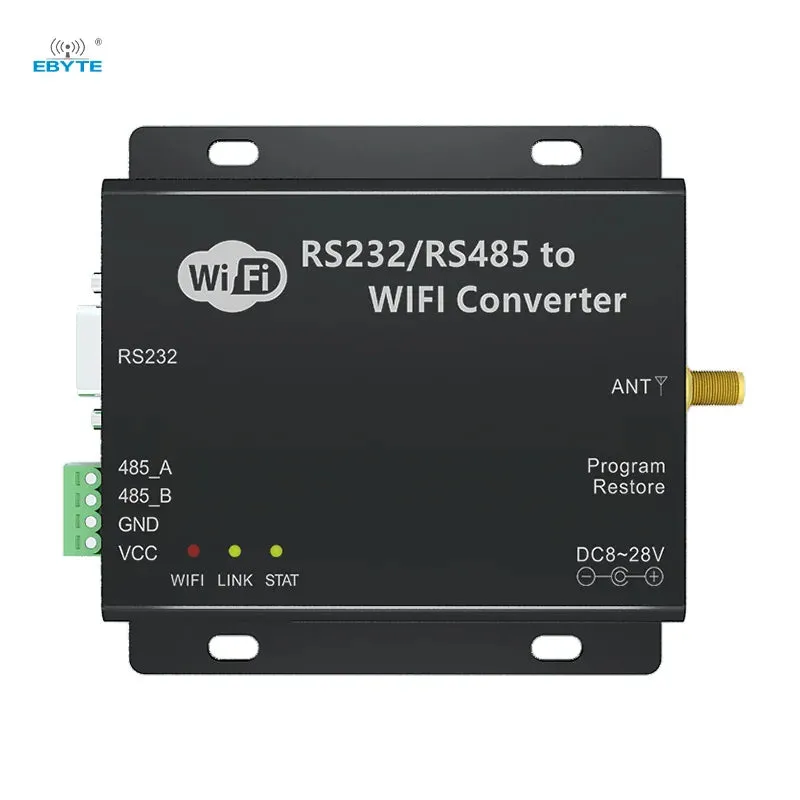

Ebyte CC3200 RS232 RS485 wi-fi data transmitter receiver 802.11b/g/n 2.4ghz industrial wifi serial server converter
[Frequency]：2.402~2.484GHz
[Power]：20dBm
[Distance]：0.3km
[Product weight]：160g
[Interface]：RS232/RS485
[Introduction]：Ebyte E103-W02-DTU realizes two-way transparent transmission of RS232 or RS485 serial port and wireless WiFi data. The traditional serial device has the function of TCP/IP network interface immediately, which greatly expands the communication distance of the serial device.
| RF Parameter | Value |
Remark |
| Working frequency |
2402~2484 MHz |
Default: 2.4GHz |
| Transmitting power | 20 dBm |
About 100mW |
| WiFi version |
802.11 b/g/n |
|
| Test distance | 300 meter |
In open and clear air, with maximum power, 3dBi antenna gain, height of 2m |
| Hardware Parameter | Value |
Remark |

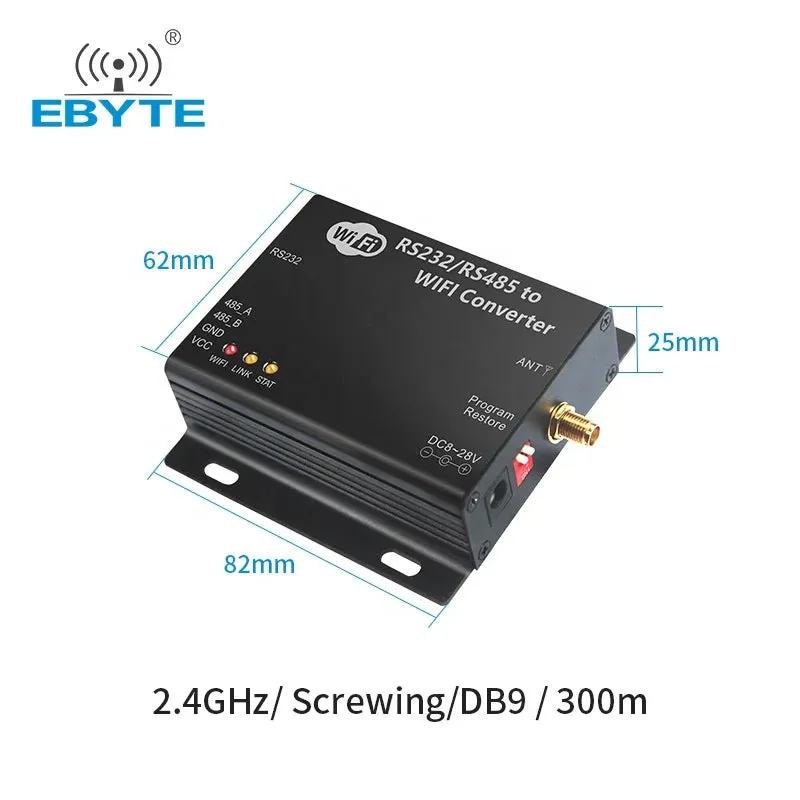

| Size |
82 * 62 * 25 mm | |
| Antenna type | SMA-K |
50Ω characteristic impedance, external thread |

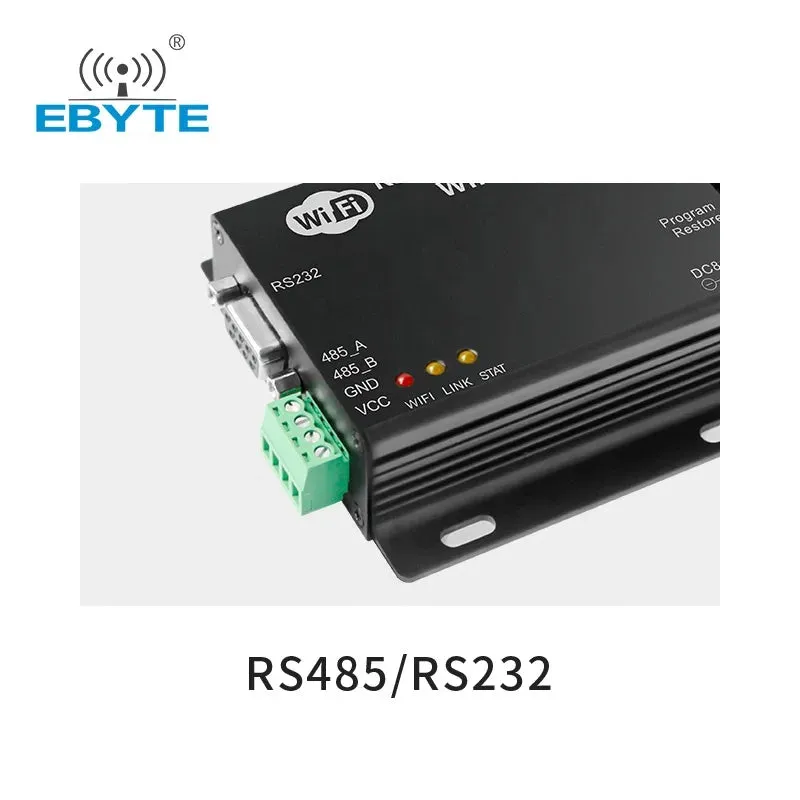

| Communication interface | RS232 / RS485 |
|
| Package |
DB-9 / Screwing |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |

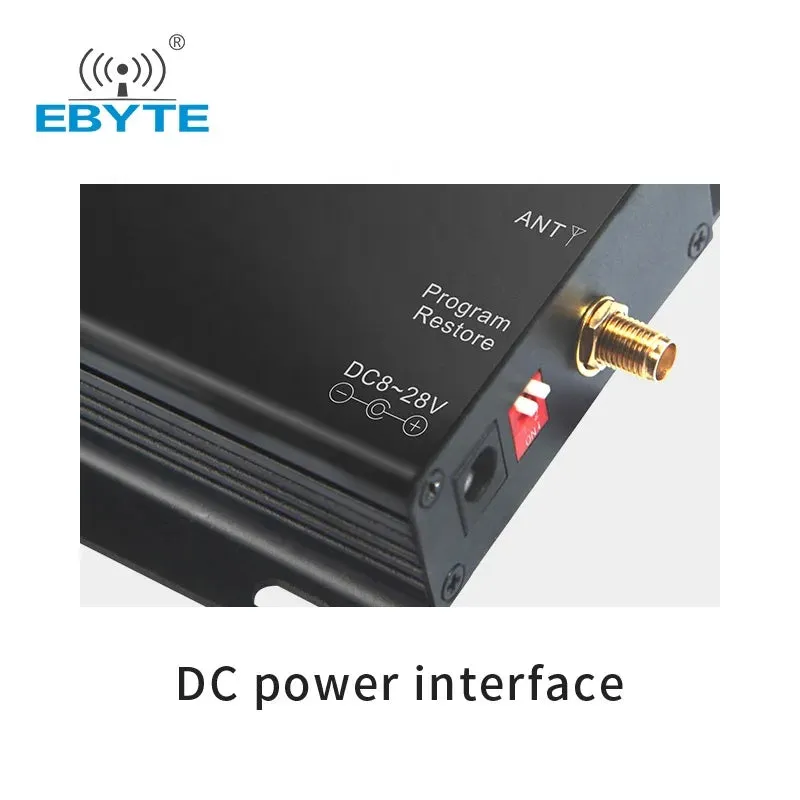

| Power supply |
10 | 12 | 28 | V | |
| Transmitting current | 70 | 77 | 84 | mA | 20dBm（100mW） |
| stand-by current | 13 |
14 | 15 | mA |
|
| Operating temperature | -40 | 20 |
85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
125 | ℃ |
