Product Details
＋
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on , or .
KEY FEATURES
- 6 Mic, 2 Aux Inputs, and CD/Stereo input (L&R).
- Built-in MP3 player with remote control and LCD display for USB, SD/MMC card reader.
- Stereo/Mono switch to change the ambiance of MP3 music player and CD/Stereo music for DJ programs.
- Separate USB level control provided.
DESCRIPTION

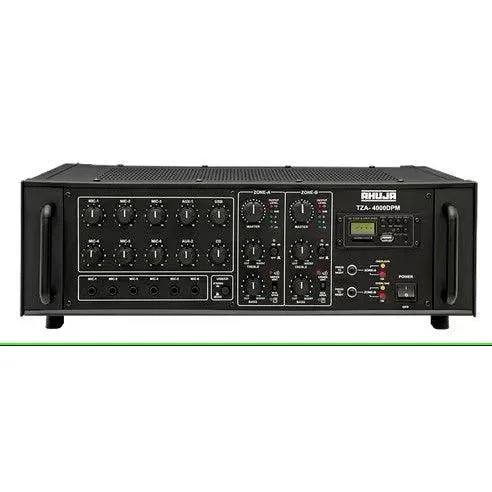

Ahuja TZA4000DPM PA Mixer Amplifier gives Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Also provides Preamplifier output for recording. And uses a Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility. It features a Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.
SPECIFICATIONS
| Power output: | 300W 300W Max., 200W 200W RMS at 10% THD, 180W 180W RMS at 5% THD, 165W 165W RMS at 2% THD |
| Input channels: | Mic/Aux: 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
| Frequency response: | 50-15,000Hz ±3dB |
| Signal to noise ratio: | 60dB |
| Digital player: | MP3 Player with USB, SD and MMC Card Reader |
| Power supply: | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power cosumption: | AC: 700VA DC: 9A |
| Dimensions: | W510 × H172 × D385 mm |
| Weight: | 24.2 Kg |
