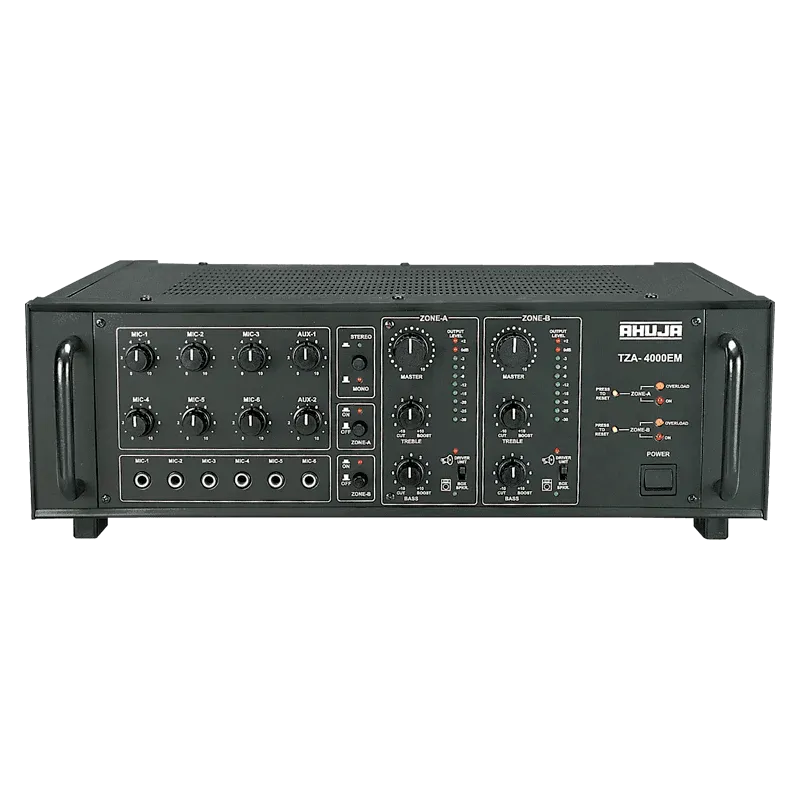

Name: Ahuja TZA-4000EM 400 WATTS 2 ZONE PA MIXER AMPLIFIER
SKU: 221133

Product Details ＋

Note: This is a B2B Product

-Prices are indicative and discounts available based on quantities

-Design services available for these systems. Please contact our team for support on , or .

Are you looking for a reliable and powerful mixer amplifier for your place of worship? Look no further than the AHUJA TZA-4000EM 400 Watts 2 Zone PA Mixer Amplifier! This mixer amplifier features 6 Mic & 2 Aux Inputs, ‘Stereo’ Music Operation for DJ programmes, Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively, and a Preamplifier output for recording. It also has a Box Speaker/Driver Unit selector switch for each zone, a Bass boost defeated at Driver Unit position for safer operation of driver units, and a Zone On/Off facility. Plus, it has a resettable circuit breaker for protection against overload and short circuit and an instant transfer to DC power (Car Battery) if AC power fails.

FEATURES:

🎙️ 6 Mic & 2 Aux Inputs: This mixer amplifier features 6 Mic & 2 Aux Inputs for maximum sound flexibility.

🔊 ‘Stereo’ Music Operation for DJ programmes: The ‘Stereo’ Music Operation feature allows for DJ programmes to be played.

📻 Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively: This mixer amplifier features Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.

🎛️ Box Speaker/Driver Unit selector switch for each zone: The Box Speaker/Driver Unit selector switch allows for each zone to be adjusted for maximum sound quality.

🔋 Resettable circuit breaker for protection against overload and short circuit: The resettable circuit breaker ensures protection against overload and short circuit.

🔌 Instant transfer to DC power (Car Battery) if AC power fails: This mixer amplifier has an instant transfer to DC power (Car Battery) if AC power fails.

SPECIFICATIONS:

Power Output	300W 300W Max., 200W 200W RMS at 10% THD, 180W 180W RMS at 5% THD, 165W 165W RMS at 2% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response	50-15,000Hz ±3dB
Signal to Noise Ratio	60dB
Tone Controls	Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs	Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs	4Ω, 8Ω, 70V & 100V for each zone
Power Supply	AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption	AC: 700VA DC: 9A
Dimensions	W510 × H172 × D385 mm
Weight	24.2kg

HOW IT WORKS:

The AHUJA TZA-4000EM 400 Watts 2 Zone PA Mixer Amplifier works by allowing you to connect up to 6 microphones and 2 Aux Inputs for maximum sound flexibility. You can then use the ‘Stereo’ Music Operation feature for DJ programmes, and the Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. You can also adjust each zone with the Box Speaker/Driver Unit selector switch for maximum sound quality. The resettable circuit breaker ensures protection against overload and short circuit, and the instant transfer to DC power (Car Battery) if AC power fails.
