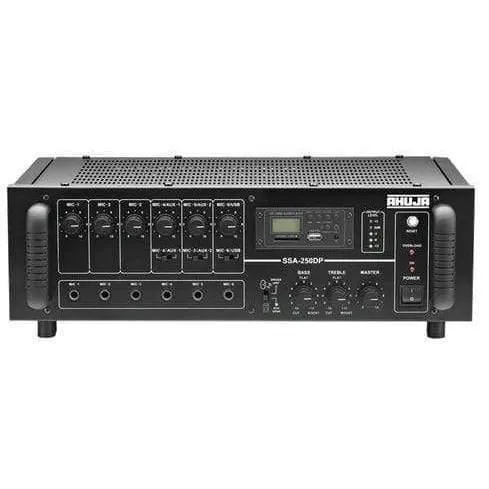

Name: Ahuja SSA-250DP Amplifier
SKU: 221121

Product Details ＋

Note: This is a B2B Product

-Prices are indicative and discounts available based on quantities

-Design services available for these systems. Please contact our team for support on , or .

Are you looking for a reliable and powerful amplifier for your next event? Look no further than the AHUJA SSA-250DP Amplifier! This 6 mic and 2 aux input amplifier is equipped with a built-in MP3 player with remote control for USB, SD/MMC card reader and preamplifier and line output for connecting to a booster amplifier and for recording the program. It also has a line input for connecting the output from any external mixer or permitting the SSA-250DP to be used as a booster power amplifier. Plus, it has a resettable circuit breaker for protection against overload and short circuit, and an instant transfer to DC power (car battery) if AC power fails.

FEATURES:

6 Mic & 2 Aux Inputs.
Built-in MP3 player with remote control for USB, SD/MMC card reader.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the program.
Line Input for connecting the output from any external mixer or permitting SSA-250DP to be used as a Booster Power Amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

SPECIFICATIONS:

Power Output	300W Max., 250W RMS at 10% THD, 220W Max., 160W RMS at 10% THD 220W RMS at 5% THD, 200W RMS at 2% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	6 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ
Frequency Response	50-15,000Hz ±3dB
Signal to Noise Ratio	60dB
Tone Controls	Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output	Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output	4Ω, 8Ω, 70V & 100V
Digital Player	MP3 Player with USB, SD and MMC Card Reader
Power Supply	AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption	AC: 460VA DC: 6A
Dimensions	W450 × H160 × D340 mm
Weight	16.0kg

HOW IT WORKS:

To use the AHUJA SSA-250DP Amplifier, simply plug in the 6 mic and 2 aux inputs, and the amplifier will amplify the sound and output it through the preamplifier and line output. You can also connect the output from any external mixer or use the amplifier as a booster power amplifier.
