Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on , or .

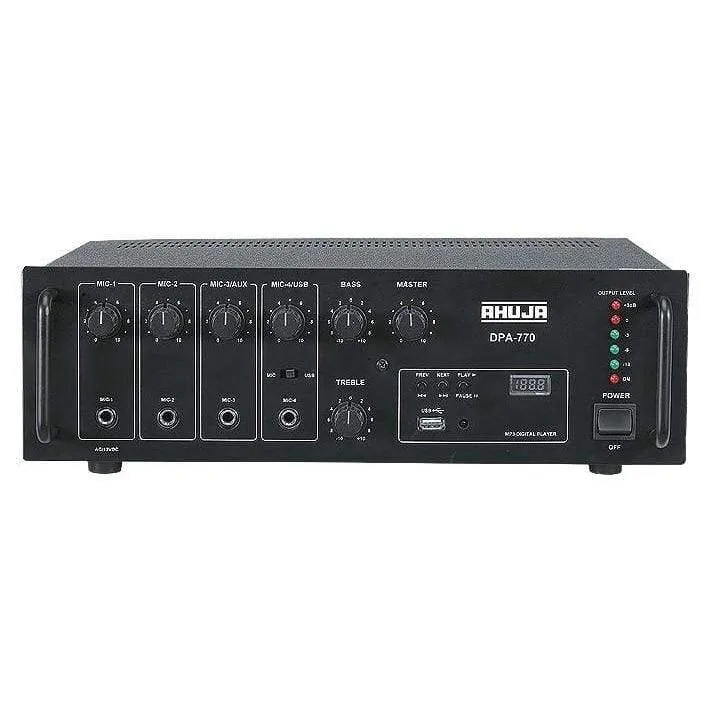

DPA-770
75 WATTS WITH BUILT-IN DIGITAL PLAYER
MEDIUM WATTAGE PA MIXER AMPLIFIER
- 4 Mic & 1 Aux Input.
- Built-in MP3 player with USB reader and remote control.
- Line Output for connecting to a Booster Amplifier.
- Active Bass & Treble controls.
- Instant transfer to DC Power (Car Battery) if AC power fails.
- 5 LED array for output level monitoring.
SPECS
Power Output | 100W Max., 75W RMS at 10% THD, 70W RMS at 5% THD |
Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
Input Channels | 4 × Mic. 0.6mV/4.7kΩ, 1 × Aux 100mV/330kΩ |
Frequency Response | 50-15,000Hz ±3dB |
Signal to Noise Ratio | 55dB |
Tone Controls | Bass: -10dB 7dB at 100Hz, Treble: -10dB 7dB at 10kHz |
Outputs | Line: 1V/3.5kΩ |
Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V |
Digital Player | MP3 Player with USB Reader |
Power Supply | AC: 220-240V 50/60Hz, DC: 12-14V Car Battery |
Power Consumption | AC: 140VA DC: 3A |
Dimensions | W385 × H130 × D310 mm |
Weight | 9.6kg |
