Product Details
＋

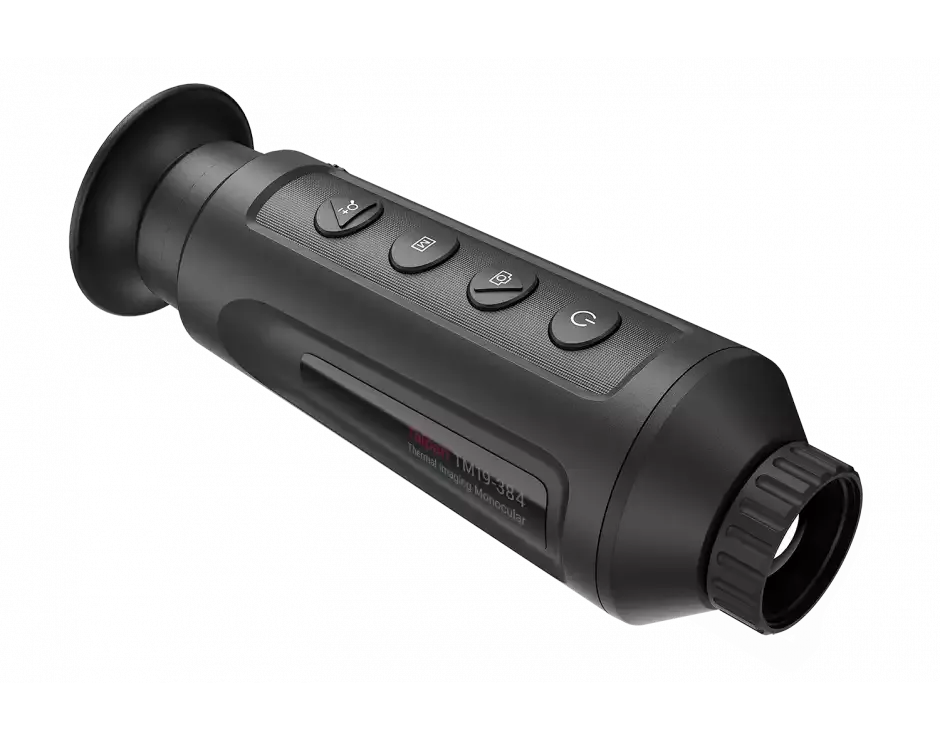

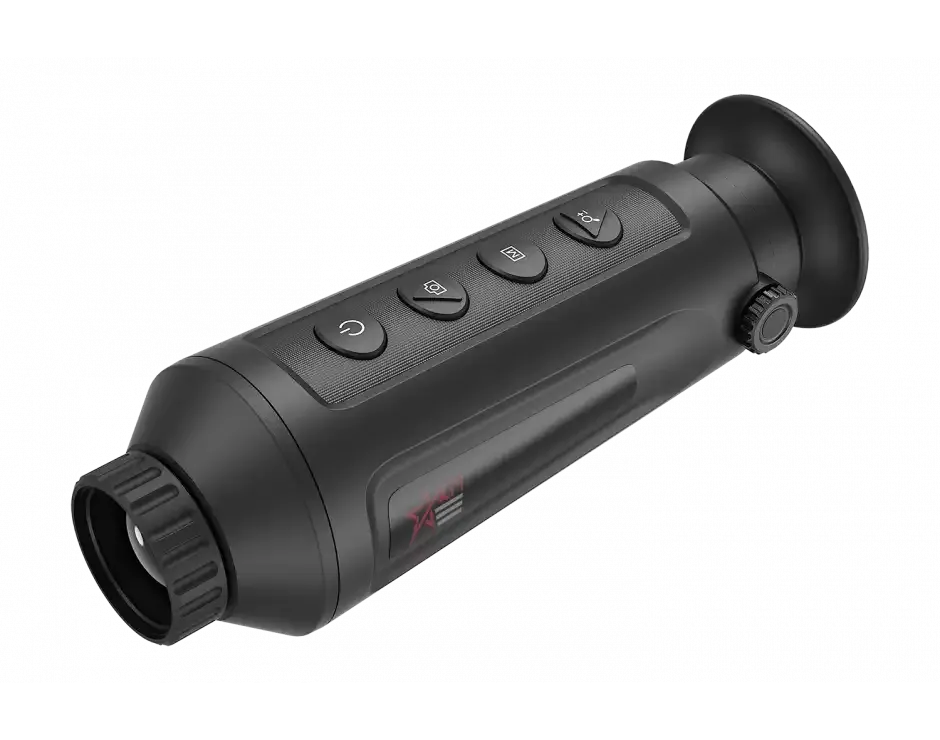

AGM Global Vision Taipan TM19-384
The Taipan™ handheld thermal monocular is equipped with a 384×288 12μm infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and more.
The high-sensitivity built-in thermal detector provides a clear view even in total darkness. The monocular is mainly used in scenarios such as patrolling, law enforcement, search-and-rescue, drug enforcement, anti-smuggling, hiking, and hunting.
CHARACTERISTICS:
- Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
- Refresh rate: Sensor / LCOS display 50 Hz
- Resolution: 384x288
- FOV: 13.8° × 10.4°
PACKAGE INCLUDES:
- USB Cable
- Lanyard
- EU Plug
- Lens Cloth
- Operation Manual
EXPORT RESTRICTIONS:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
- Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
- Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
- Mode Switch: Device supports pallet switch and distance measurement.
- Storage: Built-in memory module supports video recording/snapshot capturing.
- Digital Zoom: Device supports 1×, 2×, 4×, and 8× digital zoom.
- Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
- 384×288 resolution, 12 μm, high sensitivity detector/
- Adaptive AGC, DDE, 3D DNR
- 1280 × 960 resolution 0.4-inch LCOS display
- Built-in rechargeable Lithium battery
- More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- 5-Year warranty
| Interface | USB Type-C |
| Pixel Interval | 12 μm |
| Multi Language menu | Yes |
| Drop Test Height | 1.5 m (4.9 feet) |
| Digital Magnification | 2x - 16x |
| Detector type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Response Waveband | 8μm to 14μm |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Highest Temperature Spot Tracking | Yes |
| Standby Mode | Yes |
| Refresh rate | Sensor / OLED 50 Hz |
| Aperture | F1.0 |
| Resolution | 384×288 |
| Detection Range (6' object) | 900m/yd |
| NETD | Less than 35 mk (@25°C), F#=1.0 |
| Lens (focal length) | 19 mm |
| Power | 5 VDC/2 A, 1.5 W |
| Field of view (H × X) | 13.8° × 10.4° (H × V) |
| Digital zoom | 2×, 4×, 8× |
| Monitor | 1280×960, 0.4 inch, LCOS |
| Imaging palettes | Black Hot, White Hot, Red Hot, Fusion |
| Storage | Built-in memory module (8 GB) |
| Record Video | On-board video recording |
| Capture Snapshot | Yes |
| Battery Type | Built-in rechargeable Lithium battery |
| Wi-Fi | Yes |
| CVBS Output | Yes (via USB) |
| Battery Operating Time | More than 7.5 hours continuous running (with Wi-Fi hotspot function off) |
| Battery Capacity Display | Yes |
| Weight | 310 g (0.68 lb) |
| Working Temperature/ Humidity | -20°C to 55°C (-4°F to 131°F) |
| Overall Dimensions | 171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in) |
| Protection Level | IP67 |
| Magnification | 2x |
