Product Details
＋

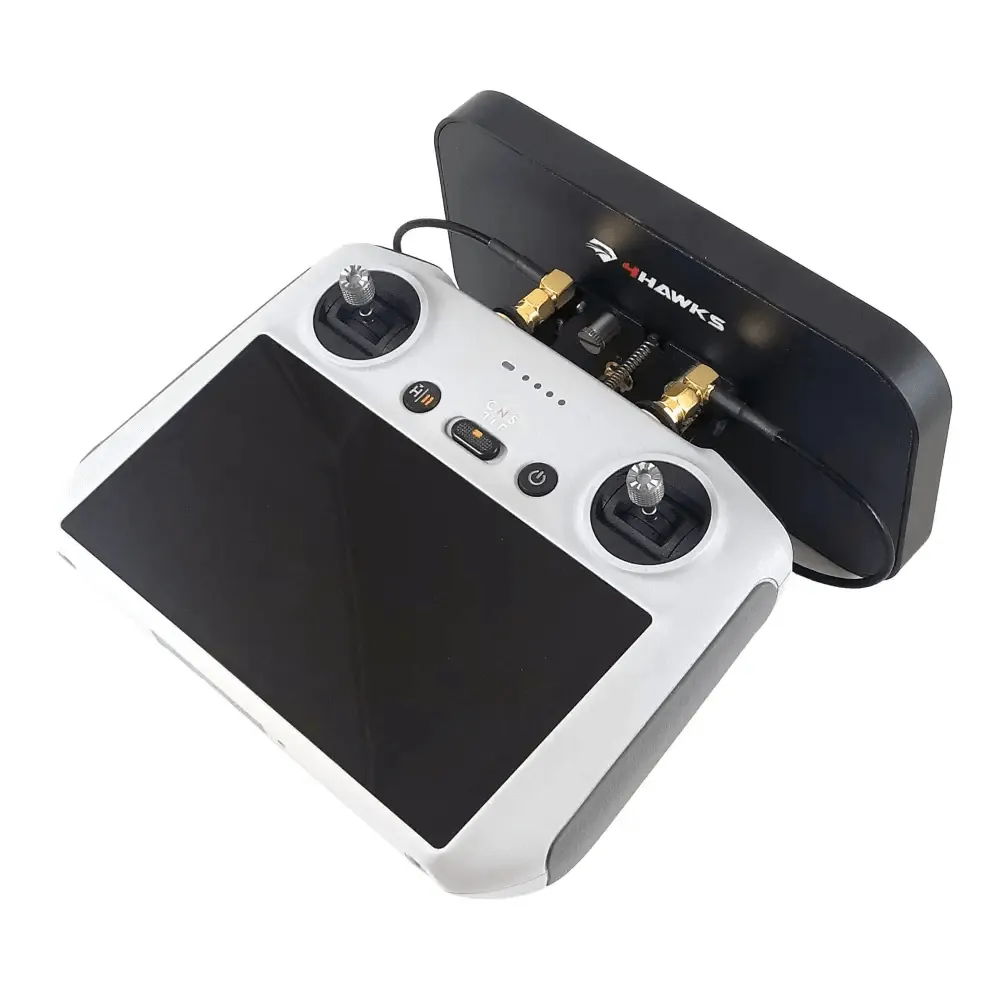

4hawks SuperRange (SR) Designed for DJI RC Mavic Mini 3 | Mavic 3 Classic
- Concurrent dual band 2.4 & 5GHz
- Long range extension without external boosters
- Complete solution
- Please note - Standard antenna is delivered with 15cm aerial RPSMA-RPSMA cables to connect the controller with the antenna. It is possible though, to use longer cables for remote antenna installation.
The 4hawks SR range extender is one of the newest additions to the 4hawks lineup. Do not let the small size of the antenna fool you, this antenna turns your omni directional stock antennas into a directional dual band patch antenna system which then focuses all of the signal in front of the antenna vs a 360 degree bubble around you! This helps tremendously!
If youre looking for an amplified version instead of a non amplified like this 4hawks please check out the
Specification:
electrical & mechanical parameters of Raptor renge extender.
Electrical parameters:
Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Gain
Port 1: 8 dBi ( /- 1 dBi) & 10 dBi ( /- 1 dBi)
Port 2: 8 dBi ( /- 1 dBi) & 10 dBi ( /- 1 dBi)
Port 2: 8 dBi ( /- 1 dBi) & 10 dBi ( /- 1 dBi)
VSWR
Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)
Beamwidth
Port 1: 90°/65° & 55°/55°
Port 2: 90°/65° & 55°/55°
Port 2: 90°/65° & 55°/55°
Polarization
Port 1: Vertical
Port 2: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω
Port 2: 50 Ω
Mechanical parameters
Material
Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel paint
Mounting: Stainless steel paint
Weight
~ 180g (110g Antenna 70g Mounting)
Dimensions
16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch
6.34 x 3.60 x 0.67 inch
Connection
Port 1: RP-SMA female
Port 2: RP-SMA female
Port 2: RP-SMA female
Tilt adjustment
5 tilt positions, OnClick system
Mounting type
On SMA connectors (Permanent)
In the box
4hawks Raptor SR antenna
Internal install cables for DJI RC
Remote to antenna connection cables
Small installation tool set
