Product Details
＋

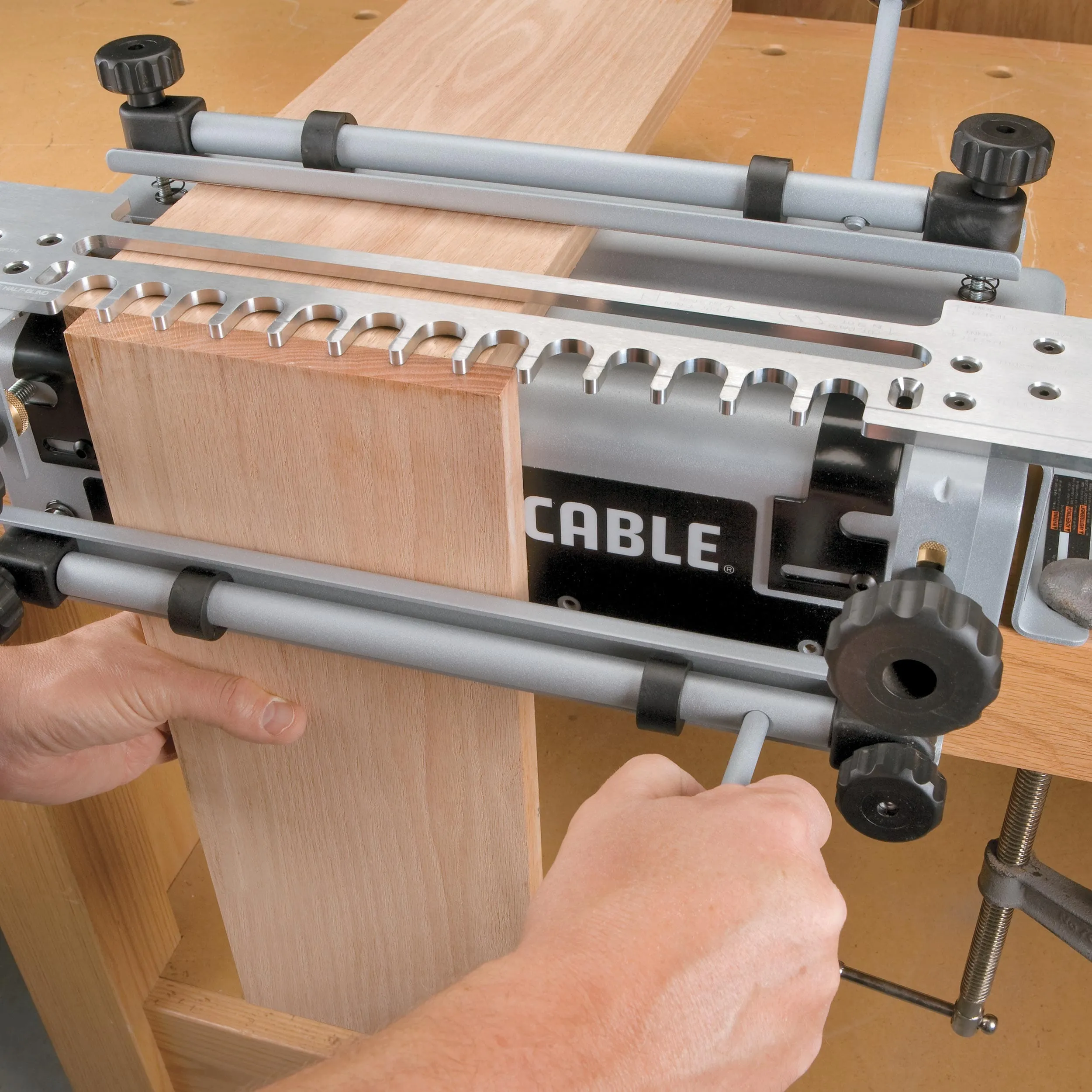

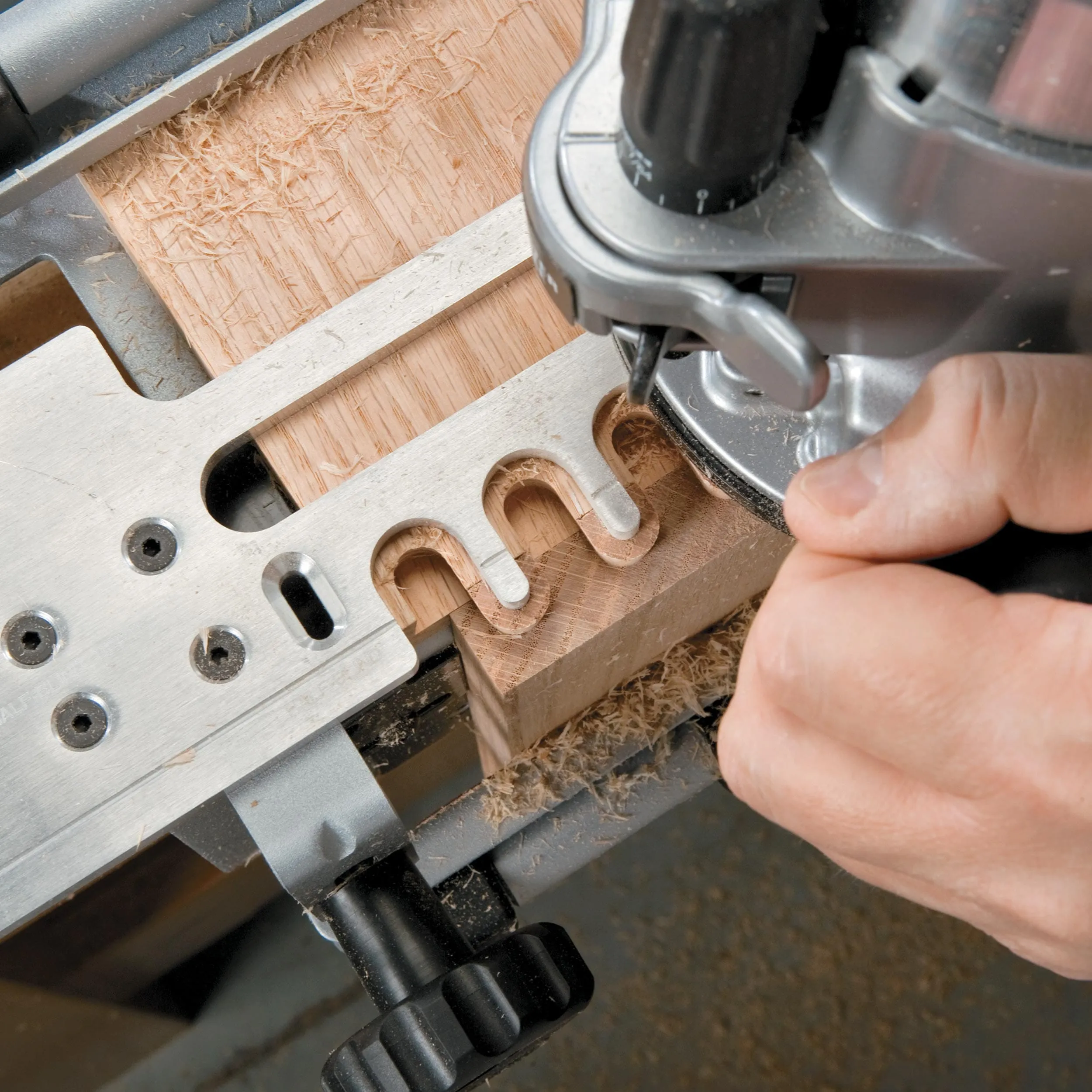

Porter Cable® Model 4212 — If you have put off cutting dovetails with your router because of the complicated set-up of dovetail jigs, wait no longer. Porter-Cable's 12" Deluxe Dovetail Jig will have you up and cutting dovetails in minutes. This jig is designed with patented alignment lines and a router bit depth stop so set-up is easy. Simply adjust the template so the alignment marks line up with your work piece, set your router bit depth according to the depth stop, and start routing.
Features:
- Ideal for woodworking, furniture and cabinet making, joinery for drawers and boxes
- Jig will cut half-blind dovetails, rabbeted half-blind dovetails and dovetail dadoes
- Template is CNC machined aluminum to provide superior accuracy
- Heavy-duty cam-type clamps with locking bars provide a solid grip for the wood
- Jig clamps or bolts directly to the work bench
- Patented alignment lines and router bit depth stop allow for quick, easy set-up
Specifications:
- Stock Width: Up to 12" wide
- Capacity in Wood (thickness): 1/4" - 1-1/8"
- Compatibility: For use with routers with 1/2" collet

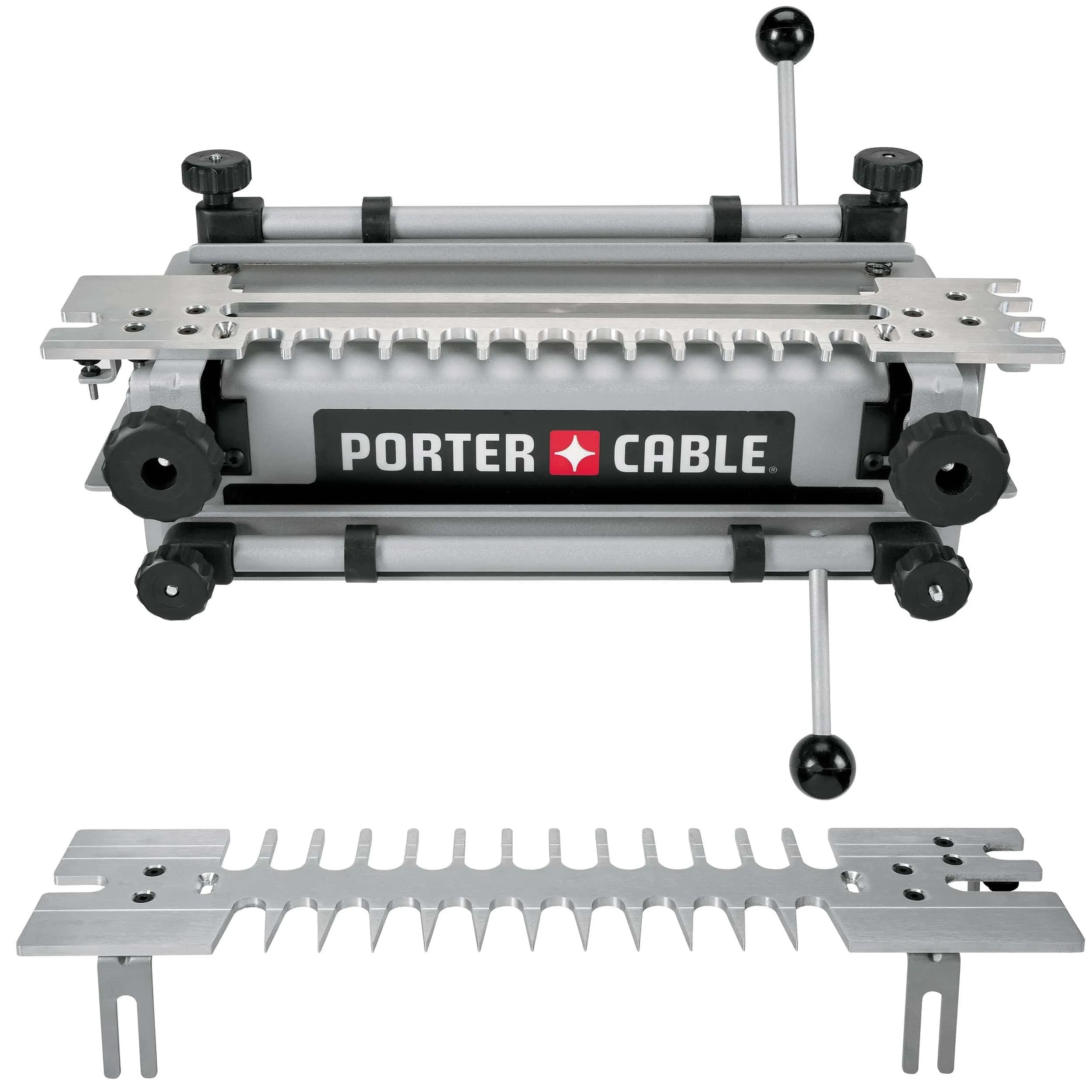

What's Included:
- (1) Jig Base
- (1) Template 4211 for half-blind, rabbeted half-blind and sliding dovetails
- (1) Template 4213 for through dovetails and box joints
- (1) 7º carbide dovetail bit with 1/2" shank
- (1) 1/2" shank carbide-tipped straight bit
- (2) Template guides
- (2) Lock nuts
- (1) Wrench
- (1) Instruction manual
